Co_Routines Support for Oberon

Postby Dmitry Dagaev » Wed Mar 29, 2017 6:06 pm

This topic deals with Co_ subsystem: Co_Routines cross-platform support for Oberon.

It was developed in 2014 and has public domain licence.
The CPC version for BlackBox is http://www.zinnamturm.eu/downloadsAC.htm#Co_.
The cross-platform collection is http://sourceforge.net/projects/ta1/files/co2.0/. (co-v2.0-all.zip)

Basically, Co_ subsystem is implement in Oberon style and supports following platforms:
    BlackBox for Windows, which is based on Windows Fibers coroutines implementation
    BlackBox for Linux, based on unix contexts (makecontext, swapcontext)
    XDS for Windows, based on Modula2 COROUTINES
    XDS for Linux, based on Modula2 COROUTINES
    Ofront for Windows/Linux (not published)

It has no Kernel support yet, so pointers in coroutines are not examined by garbage collector.

Co_ subsystem supports 2 types of coroutines (classification taken from http://wiki.c2.com/?CoRoutine):
    1.Anonymous coroutines - used by Scheduler for Cooperative Multitasking
    2.Directed Coroutines - called as subroutines by stack discipline

Co_ package consists of following modules with comprehensive examples:
    Co_Tasks - Task for Cooperative Multitasking and base module for Co_Routines
    Co_Routines - Implementation itself
    Co_ScheadTasks - scheduler for Cooperative Multitasking
    ObxSameFringe - Same Fringe problem example (directed coroutine)
    ObxMJackson - Michael Jackson's methology for inverted programming - grep example (directed coroutine)
    ObxShakespeare - Othello play scheduler
    ObxAction - background task Co_Routines-based implementation
    ObxTActions - background task Tasks-based implementation
    ObxPhilosophers - Dining Philosophers multitasking problem with semaphores
    ObxProducerConsumer - Producers and Consumers multitasking
    ObxReadersWriters

In this branch I'll concern several issues about coroutines I met during the latter period.
Last edited by Dmitry Dagaev on Wed Mar 29, 2017 8:31 pm, edited 1 time in total.
Dmitry Dagaev

Posts: 59
Joined: Wed Mar 29, 2017 3:58 pm

Re: Co_Routines Support for Oberon

Postby Dmitry Dagaev » Wed Mar 29, 2017 6:55 pm

Basic types for tools
(9.41 KiB) Not downloaded yet
Types of Tools.
Co_Tasks module introduce the basic types for tools, providing pseudo-parallel execution. In is derived from C.Szyperski "Insight-EthOS" where the relations between entities below were defined (Fig: types.png).

Task is the most lightweight form, Coroutine contains stack information. Preemptive forms are not considered here. In order to implement multitasking, Scheduler (Co_SchedTasks) is purposed.
Last edited by Dmitry Dagaev on Wed Mar 29, 2017 7:41 pm, edited 1 time in total.
Dmitry Dagaev

Posts: 59
Joined: Wed Mar 29, 2017 3:58 pm

Re: Co_Routines Support for Oberon

Postby Dmitry Dagaev » Wed Mar 29, 2017 7:40 pm

Types of Co_Routines (More about types http://www.softpanorama.org/Lang/Asmorama/coroutines_in_assembler.shtml).
Either of technologies used perform context switching.

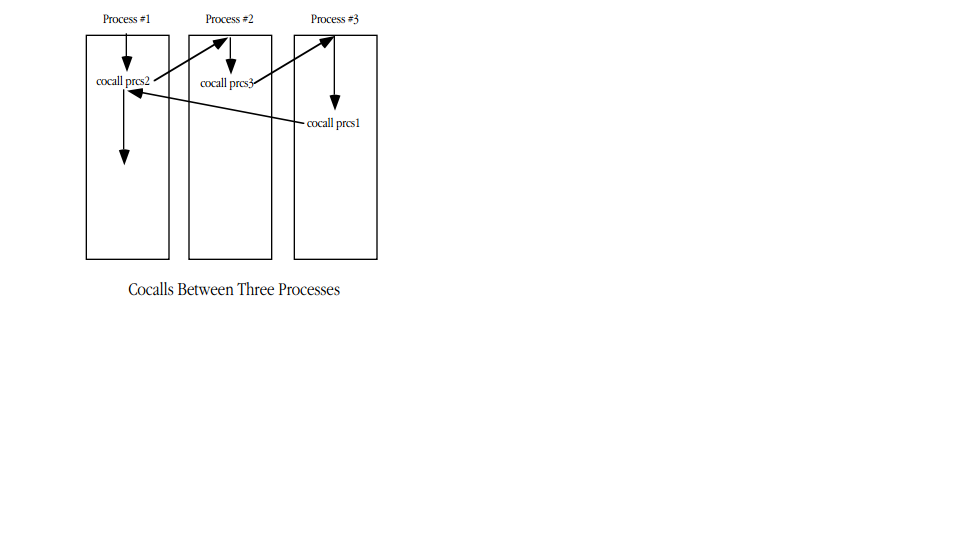

Cocall instruction directs control to other Co_Routine. We use Transfer command to cocall. In the Fig: co3.png we see cocalls between processes.
Process1(transfer)->Process2(transfer)->Process3(transfer)->Process1
1.In case of Anonymous Co_Routines there is no problem, there is just control transfer to other. In case of Cooperative Multitasking - to unknown other, caused by Scheduler. Transfer in this model takes no arguments--there is no meaningful way to send data to the next context to run, because it is not known which context it will be!
2.Directed coroutines transfer to definite other and inputs/outputs data from on return.
But here is a problem, when you (Process1) pass data for Process2, but control returns from Process3!

Directed coroutines must have semantics similar to subroutines. Example on nested subroutines:
Code: Select all
PROCEDURE c(x: INTEGER; VAR y: INTEGER);
BEGIN
    y := x+3
END c;

PROCEDURE b(x: INTEGER; VAR y: INTEGER);
    VAR z: INTEGER;
BEGIN
    c(x, z);
    y := z+2
END b;

PROCEDURE a;
    VAR y: INTEGER;
BEGIN
    b(0, y);
    Log.Int(y)
END a;

We assume a(call)->b(call)->c(return)->b(return)->a.
And we ensure the result is 5.

We can try coroutines techniques for this example (very simplified example)
Code: Select all
PROCEDURE c(x: INTEGER; VAR y: INTEGER);
BEGIN
    c.y := c.x+3;
    Co.Transfer(a);
END c;

PROCEDURE b(x: INTEGER; VAR y: INTEGER);
    VAR z: INTEGER;
BEGIN
    c.x := x;
    Co.Transfer(c);
    z := c.y;
    b.y := z+2
END b;

PROCEDURE a;
    VAR y: INTEGER;
BEGIN
    b.x := 0;
    Co.Transfer(b);
    y := b.y;
    Log.Int(y)
END a;

I deliberately made an error, corresponding to co3.png: it must be Co.Transfer(b) from PROCEDURE c.
But can anybody predict the result of such loss of flow control?

The Co_Routines system has assurance for flow control in programs with Yield routine and reentrance protection.
Code: Select all
PROCEDURE c(x: INTEGER; VAR y: INTEGER);
BEGIN
    c.y := c.x+3;
    Co.Yield;
END c;

PROCEDURE b(x: INTEGER; VAR y: INTEGER);
    VAR z: INTEGER;
BEGIN
    c.x := x;
    Co.Transfer(c);
    z := c.y;
    b.y := z+2;
    Co.Yield
END b;

PROCEDURE a;
    VAR y: INTEGER;
BEGIN
    b.x := 0;
    Co.Transfer(b);
    y := b.y;
    Log.Int(y)
END a;
Attachments
Cocalls between three processes
Dmitry Dagaev

Posts: 59
Joined: Wed Mar 29, 2017 3:58 pm

Re: Co_Routines Support for Oberon

Postby Dmitry Dagaev » Thu Mar 30, 2017 6:29 am

Directed Coroutines syntax.
Directed coroutines are used in various languages as generators. Coroutines compiler support (in Python, Lua, etc) affords subroutine-like style. Coroutine Transfer is like subroutine call, coroutine Yield is like RETURN.
The C-like syntax with compiler support is below.
Code: Select all
int coroutine Generate123() {
   yield 1;  /* Execution begins here upon first call to Generate123 */
   yield 2;  /* execution continues here upon "resume Generate123" */
   yield 3;  /* execution continues here upon second "resume Generate123" */
  }
printf("%d\n", Generate123()); /* prints "1" */
printf("%d\n", resume Generate123()); /* prints "2" */
printf("%d\n", resume Generate123()); /* prints "3" */


The Co_Routines subsystem has no compiler support, but uses Transfer-Yield strict FILO discipline
Code: Select all
TYPE
Gen = POINTER TO RECORD (Co.Coroutine)
    rc: INTEGER
END;

PROCEDURE Do (t: Ct.Task);
    VAR g: Gen;
BEGIN
    g := t(Gen);
    g.rc := 1; Co.Yield;
    g.rc := 2; Co.Yield;
    g.rc := 3; Co.Yield
END Do;

PROCEDURE Run;
    VAR g: Gen;
BEGIN
    NEW(g);
    Co.InitCoroutine(g, Do);
    g.Start(g);
    g.Transfer(g);
    Log.Int(g.rc); Log.Ln;
    g.Transfer(g);
    Log.Int(g.rc); Log.Ln;
    g.Transfer(g);
    Log.Int(g.rc); Log.Ln;
END Run;


The new Coroutines system by Josef Templ https://forum.blackboxframework.org/viewtopic.php?f=41&t=610 syntax will be as following
Code: Select all
TYPE
Gen = POINTER TO RECORD (Co.Coroutine)
    rc: INTEGER
END;

PROCEDURE Do (this: Gen);
BEGIN
    g.rc := 1; Co.Transfer(this.from);
    g.rc := 2; Co.Transfer(this.from);
    g.rc := 3; Co.Transfer(this.from);
END Do;

PROCEDURE Run;
    VAR g: Gen;
BEGIN
    NEW(g);
    Co.Init(g);
    Co.Transfer(g);
    Log.Int(g.rc); Log.Ln;
    Co.Transfer(g);
    Log.Int(g.rc); Log.Ln;
    Co.Transfer(g);
    Log.Int(g.rc); Log.Ln;
END Run;

The problem is, that Co.Transfer(this.from) is used instead of Co.Yield statement. So FILO calling sequence not guaranteed.

Co_Routines subsystem guarantees strict FILO calling sequence. Moreover a REENTRANT_ERROR (Trap 59) is generated on such attempt.
Dmitry Dagaev

Posts: 59
Joined: Wed Mar 29, 2017 3:58 pm

Re: Co_Routines Support for Oberon

Postby Ivan Denisov » Thu Mar 30, 2017 7:48 am

Dmitry Dagaev wrote:The problem is, that Co.Transfer(this.from) is used instead of Co.Yield statement. So FILO calling sequence not guaranteed.

Why?
User avatar
Ivan Denisov

Posts: 231
Joined: Tue Sep 17, 2013 12:21 am
Location: Krasnoyarsk, Russia

Re: Co_Routines Support for Oberon

Postby Dmitry Dagaev » Thu Mar 30, 2017 8:15 am

You can type Co.Transfer(another). Nothing prevents you. And you return data not to calling point, but to other side. Just if you ask Mary an apple but get project plan from Boss.
The same situation, if you use subroutines, is guaranteed by compiler. Subroutine calls are placed in stack by FILO discipline.
CALL Subroutine();
RETURN after-the-call;
Dmitry Dagaev

Posts: 59
Joined: Wed Mar 29, 2017 3:58 pm

Re: Co_Routines Support for Oberon

Postby Josef Templ » Thu Mar 30, 2017 9:19 am

Dmitry, before I go into the design issue I have a technical question.
You are using the ConvertThreadToFiberEx function but not the
CreateFiberEx function.

Is there a special reason for that?

Do you know what the default behavior with respect to the fpu registers is
when not using the *Ex functions? I mean, is it faster to use the *Ex functions
with the floating point flag set to 0 or is this the default in the non-*Ex functions
anyway?

- Josef
Josef Templ

Posts: 211
Joined: Tue Sep 17, 2013 6:50 am

Re: Co_Routines Support for Oberon

Postby Dmitry Dagaev » Thu Mar 30, 2017 10:24 am

Josef,

I am using primary:=ConvertThreadToFiber(0) to create primary fiber for current thread and CreateFiber for each coroutine. ConvertThreadToFiber is necessary, because only fibers can execute fibers according to MSDN. On CLOSE ConvertFiberToThread is mandatory.
I have no information about Fibers implementation details.

The fastest approach is to deal with register operations. I witnessed some source code of Cooperative Tasks switching by Ilya Ermakov https://community.blackboxframework.org/viewtopic.php?f=49&t=165&p=952#p952, but this source was not published. It used GETREG/PUTREG for registers switching.
Dmitry Dagaev

Posts: 59
Joined: Wed Mar 29, 2017 3:58 pm

Re: Co_Routines Support for Oberon

Postby Josef Templ » Thu Mar 30, 2017 12:07 pm

Dmitry Dagaev wrote:I am using primary:=ConvertThreadToFiber(0) to create primary fiber for current thread and CreateFiber for each coroutine.


I see.
ConvertThreadToFiberEx (in the CPC 2014 package) is only in the Co_Api module
but not used.

- Josef
Josef Templ

Posts: 211
Joined: Tue Sep 17, 2013 6:50 am

Re: Co_Routines Support for Oberon

Postby Dmitry Dagaev » Thu Mar 30, 2017 4:33 pm

The only reason to use ConvertThreadToFiberEx is to use FIBER_FLAG_FLOAT_SWITCH. In Co_Api module I was performing some experiments on this flag, and it is set to 0 in my current version. Setting this flag results in creating fibers failure on several old (and, maybe, new) platforms. They say, that in win2k-sp6 fiber is not created when the flag is set. So I met the portability problem and decided to use default behaviour.
Dmitry Dagaev

Posts: 59
Joined: Wed Mar 29, 2017 3:58 pm
